PTFE
Payment Terms: |
T/T |
Place of Origin: |
Jiangsu, China (Mainland) |
Product Detail
Means of Transport:
Ocean
PTFE:
Film Peeling Machine
1.Peeling film width:500~800 mm
2.Peeling film thickness:0.03~5mm
3.Peeling the remaining diameter:≥φ210mm
4.Raw material maximum diameter

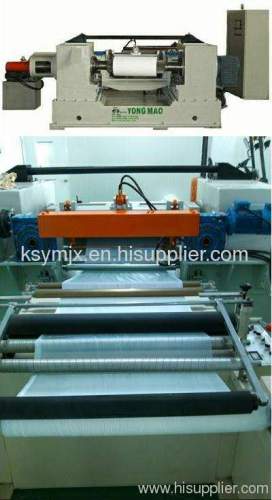

PTFE(Poly Tetra Fluoro Ethylene)Film Peeling Machine
1.Peeling film width:500~800 mm
2.Peeling film thickness:0.03~5mm
3.Peeling the remaining diameter:≥φ210mm
4.Raw material maximum diameter:Φ600mm
5.Raw material core diameter:φ200mm
6.Discharging speed:~20m/min
7.Feed speed:0.2~0.5mm/min
8.Spindle speed:10~53RPM
9.No-load speed:300mm/min
10.Total installed capacity:~15KW
11.Dimensions (L×W×H): 3800×1550×1430
12.Machine net weight:4000kg Approx.
Mainly for diameter φ600 less,a length of 500~800mm of PTFE
plastic segment peeled into a certain thickness of the thin film.
